BL-EG48300
Price :
Original price was: $1,480.00.$1,300.00Current price is: $1,300.00.
|
Model
|
BL-EG48300 15.36kWh
|
|
|
Main Parameter
|
||
|
Cell Technology
|
Lithium-iron Phosphate (LiFePO4)
|
|
|
Capacity
|
300Ah
|
|
|
Nominal Energy
|
15.36Kwh
|
|
|
Round-Trip Efficiency
|
98%
|
|
|
Scalability
|
Max. 15 Modules in Parallel
|
|
|

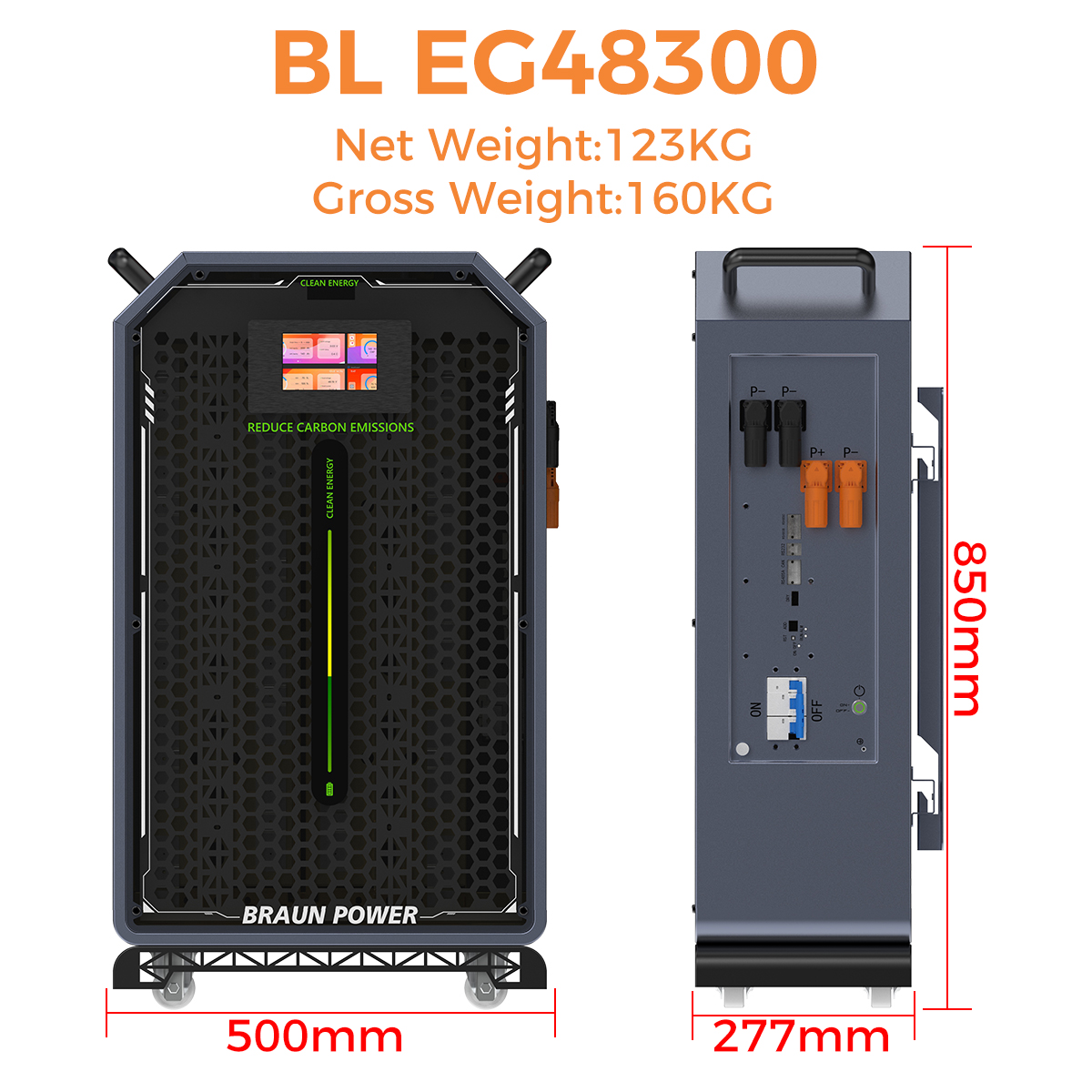

Dimensions(L/W/H)
|
850*500*282mm
|
|
|
Weight
|
150kg
|
|
|
Installation
|
Indoor
|
|
|
Warranty
|
10 Years Product Warranty
|
|
|
15 Years Performance Warranty
|
||
Description
Braun Power now have enough stock in China/Poland/US location for the
①EVE 3.2V LiFePO4 Cell
MB31/LF280K/LF105
② LiFePO4 Diy Kits
12V/24V/48V Kits with JK BMS
③48V energy storage system
EP48300/EG48300
It’s best time to have quick shipping!
(Please do not place the order directly. The freight calculated by the system is extremely high. Please send an inquiry directly to ask for the detailed price.)
|
Model |
BL-EG48300 15.36kWh | |
|
Main Parameter |
||
| Cell Technology | Lithium-iron Phosphate (LiFePO4) | |
| Capacity | 300Ah | |
| Nominal Energy | 15.36Kwh | |
| Round-Trip Efficiency | 98% | |

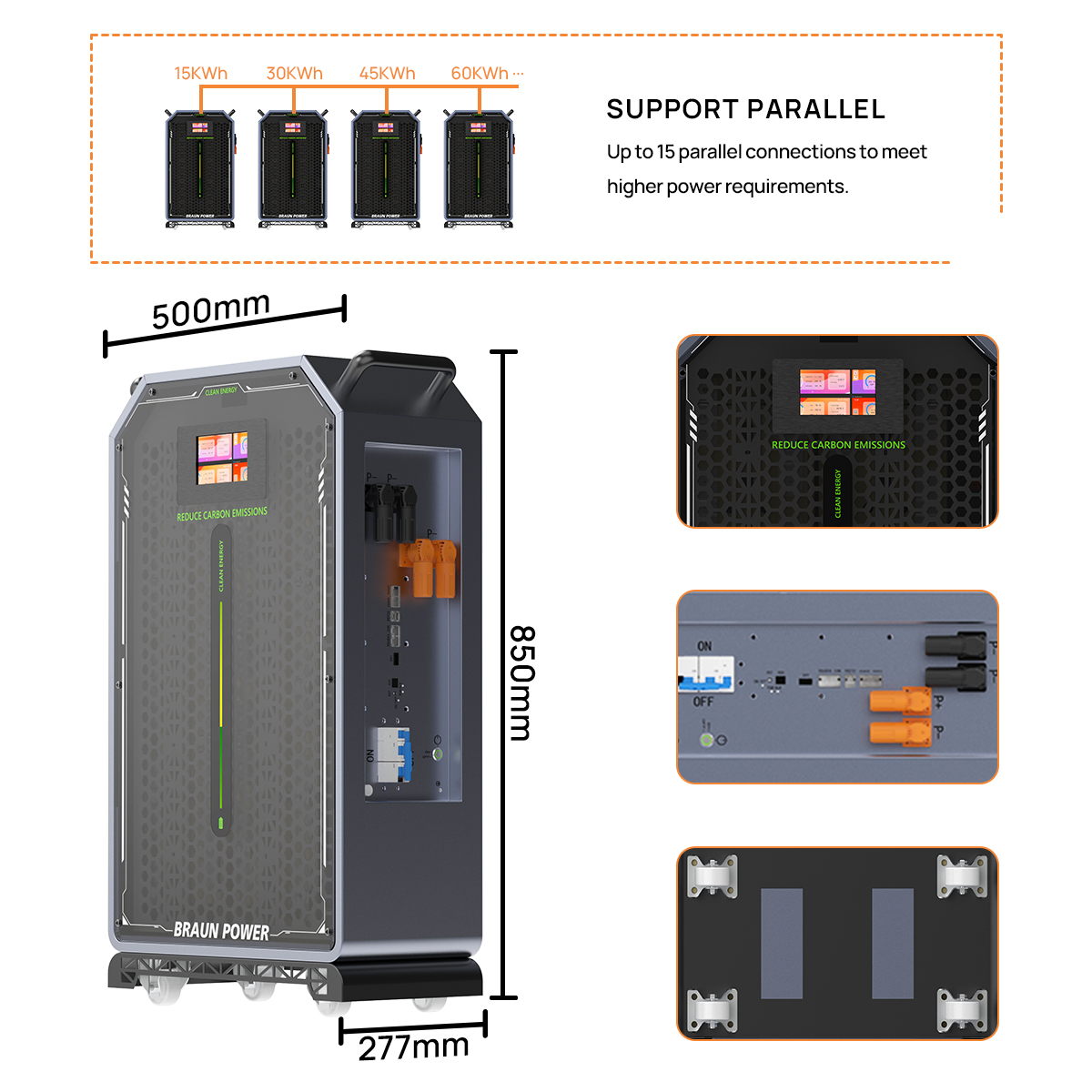

| Scalability | Max. 15 Modules in Parallel | |
| Dimensions(L/W/H) | 850*500*282mm | |
| Weight | 150kg | |
| Installation | Indoor | |
|
Warranty |
10 Years Product Warranty | |
| 15 Years Performance Warranty | ||
|
Electrical Parameter |
||
|
Nominal Voltage |
51.2V | |
| Max Charge Current | 200A | |
| Max Discharge Current | 200A | |
| Balance module | 3A active balance | |
| Operating Voltage Range | 43.2V-57.6V | |
| Charge Cut-off Voltage | 58.4V | |
| Discharge Cut-Off Voltage | 43.2V | |
|
General Parameter |
||
|
Cycle Life |
≥8000 Times (80%DOD) | |
| Service Life | 10 Years | |
| Protection Rating | IP55 | |
| Display | SOC Status Indicator(optional), LED Indicator | |
| Communication | RS485, RS232, CAN | |
| Charge Temperature Range | 0°C~60°C (Under 0C extra heating mechanism) | |
| Discharge Temperature Range | – 20°C~60°C (Under 0Cwork with reduced capacity) | |
| Storage Temperature Range | – 40°C~55°C @ 60% ± 25% relative humidity | |
|

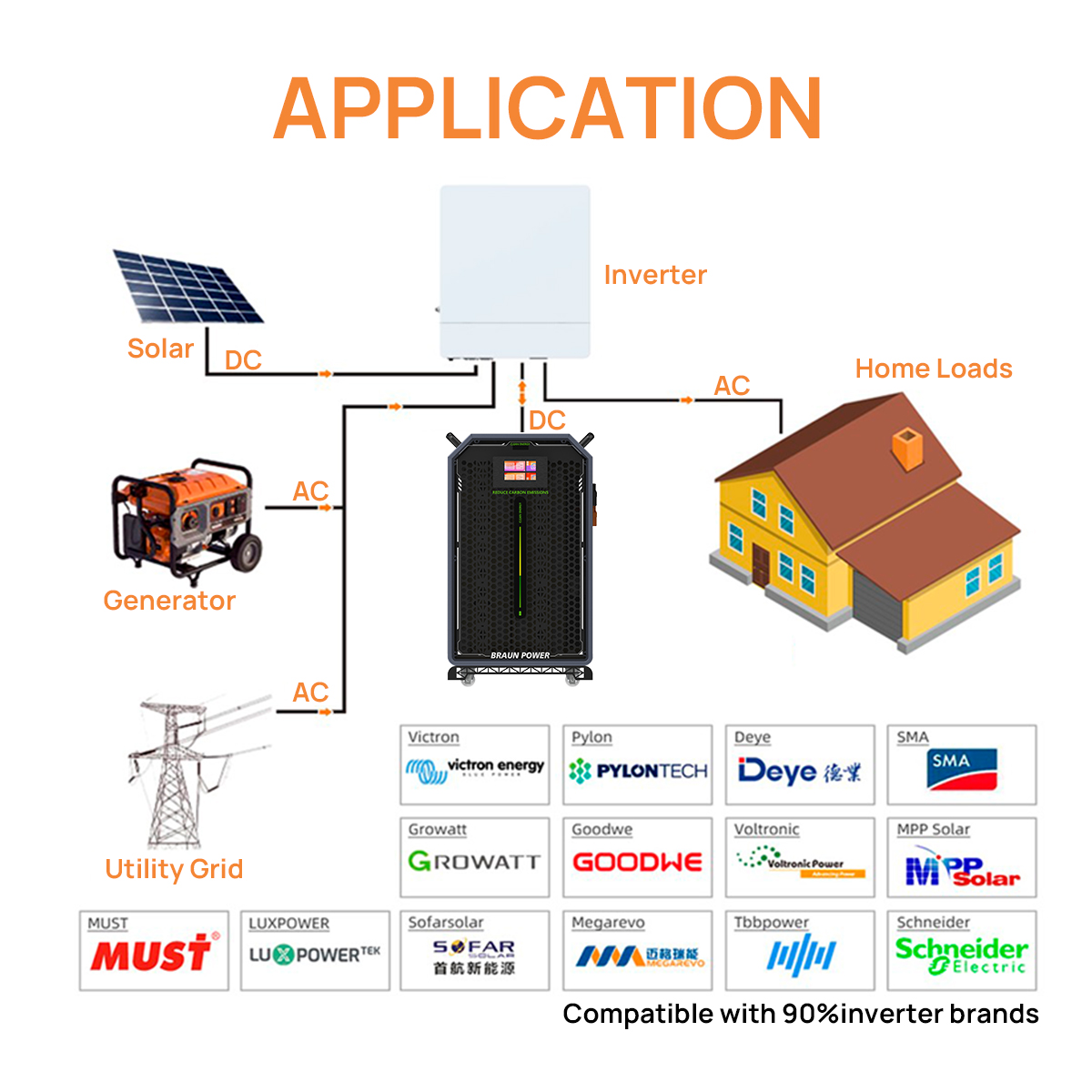

Compatible Inverters |
SMA, Victron Energy, Deye, Goodwe, Growatt, Luxpower, etc. | |
| * Contact us for the latest inverter-compatible list. ** Under specific test conditions | ||

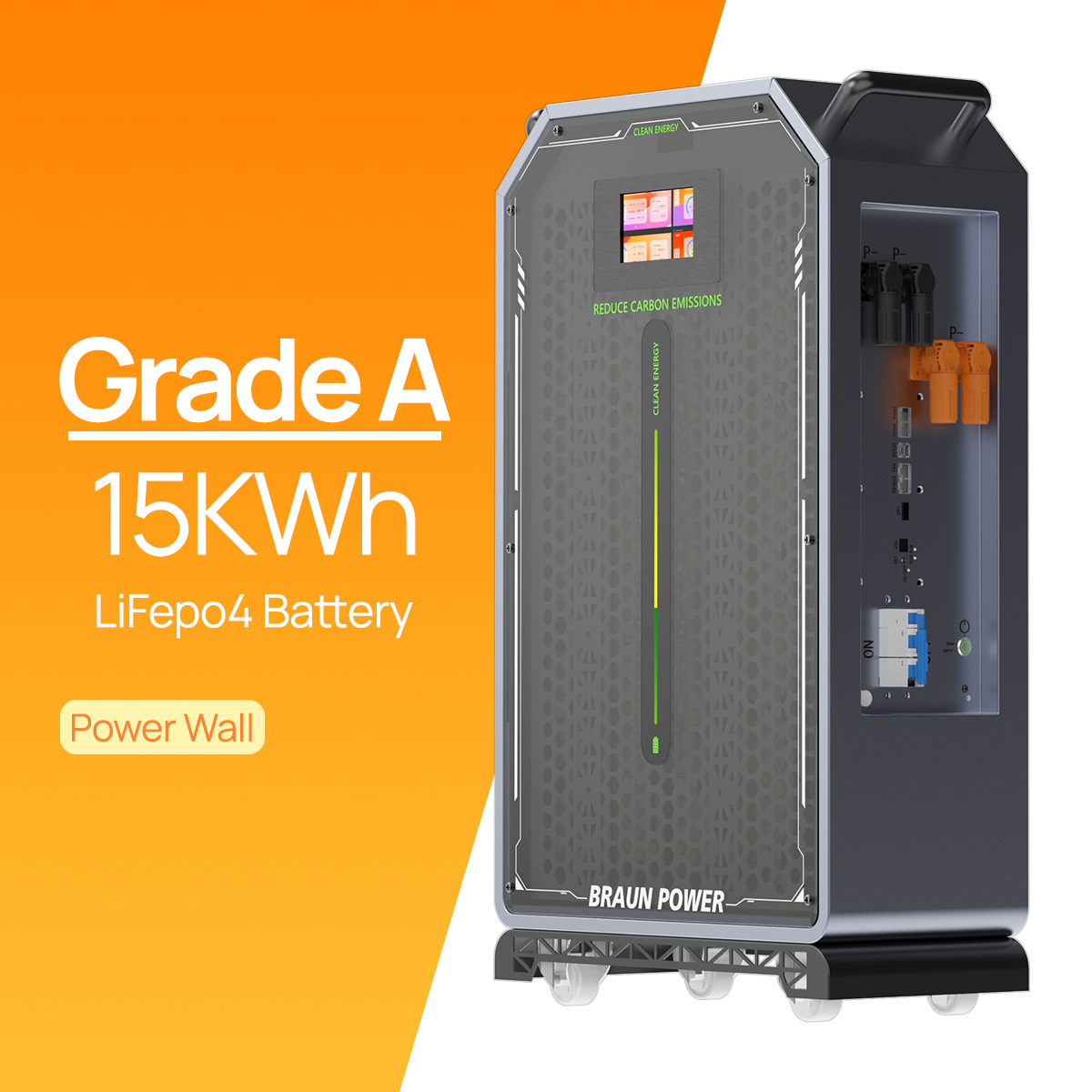

BL-EP48300 48V&51.2V 300Ah Wall Mounted Solar Energy LiFePO4 15.36kWh Battery Pack
Product features: *EVE GRADE A LiFePO4 Cells: Utilizes 16 high-quality 3.2V lithium iron phosphate cells for enhanced performance.
*Expandable Design: Vertical /Wall mounted for home energy storage, supporting parallel expansion up to 15 packs.
*Versatile Communication: Compatible with various inverters via RS485, RS232, and CAN protocols.
*User-Friendly Touch Screen: 5-inch display for selecting communication protocols and compatible with 17 languages (English.Arabic.German.Spanish.Italian.French.Polish.Romanian.Danish.Central Kurdish.Ukrainian.Bulgarian…)
*Air switch protection multiple protection funcations, ( avoid personal injury)
*Accept OEM: Option to personalize with customer logos
*Robust BMS Protection: Includes safeguards against over current, over pressure, overcharge, over-discharge, and short circuits.
|

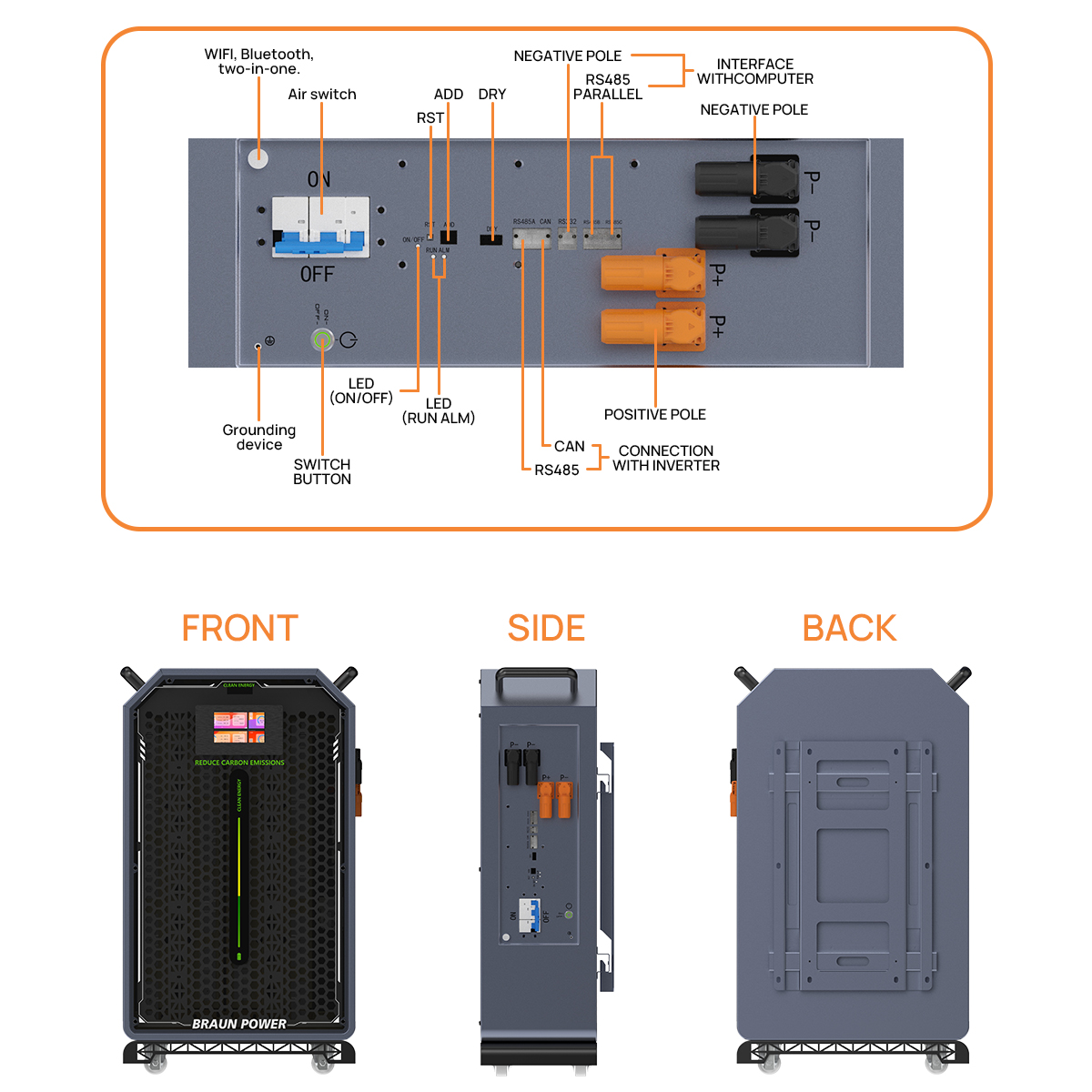

The Battery case includes the following accessories. Smart BMS with LCD dispaly and BT Kits |
|
| Pre-installed | ① BR 16S200A smart BMS with KS48100Ho20
② Active balancer(Optional) ③ DC breaker(Optional) ④ LCD dispaly ⑤ Shell, Front panel,Cover plate ⑥ Handle. |
| Insert the Cells Connect Everything Enjoy Your DIY Journey | ⑦ Insulation board
⑧ Charge and discharge connector ⑨ Screws & flexible busbar ⑩ USB-485 communication cable ⑪ 35mm² Inverter communication cable ⑫ 35mm² Parallel cable |
|

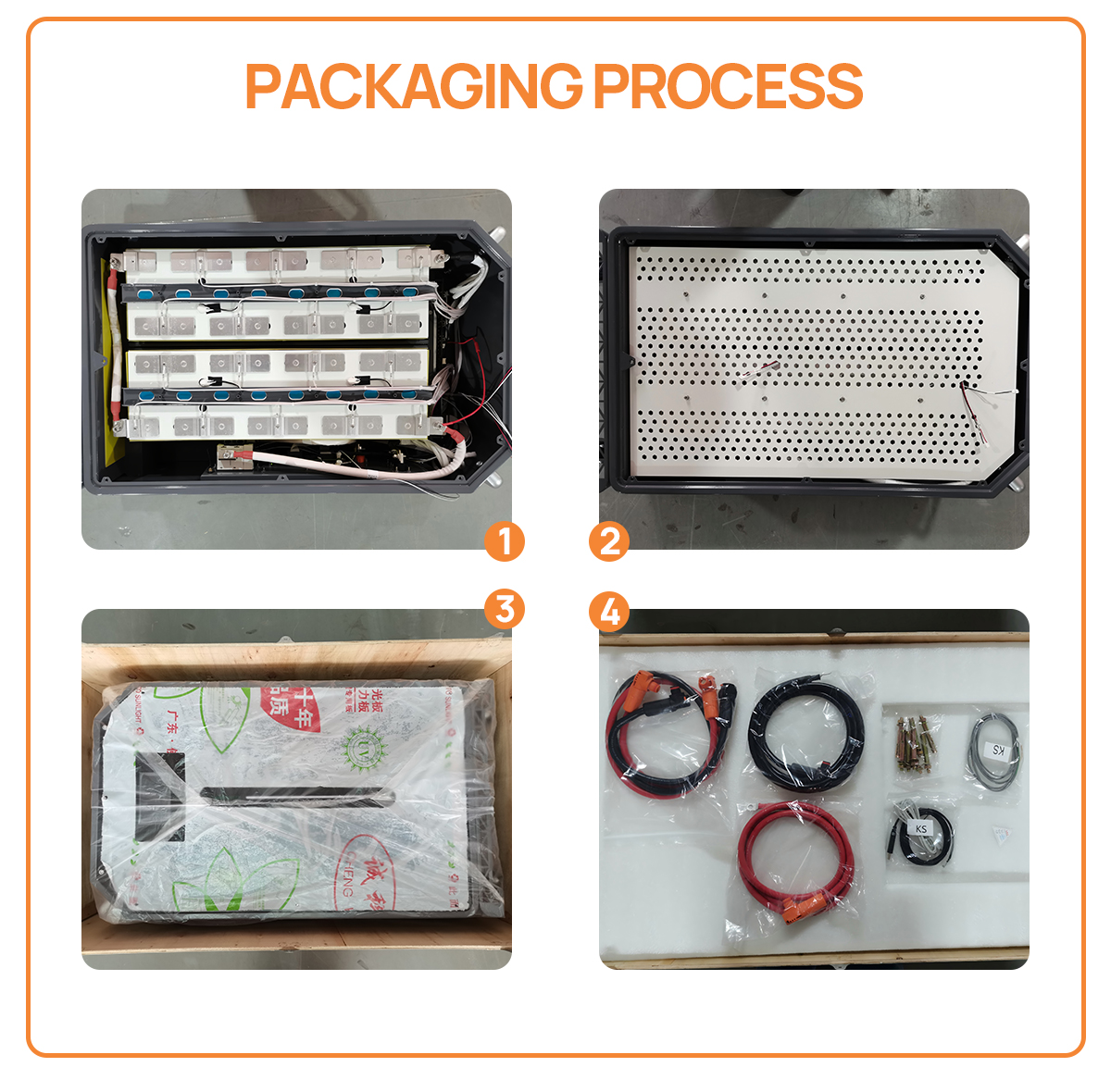

Box accessory List |
|||||
|
NO. |
Accessory Name |
QTY(PC) | NO. | Accessory Name | QTY(PC) |
| 1 |
Front Panel |
2 |
8 |
M6 Baffle Screws |
36 |
| 2 | Back Panel |
2 |
9 |
Connection wire |
1 |
| 3 | PCB Pressure Plate | 2 |
10 |
Positive and negative protect cover | 4 |
| 4 | Epoxy Board | 1SET | 11 | Soft copper plate | 15 |
| 5 | Heating film | 2 | 12 | Button caps |
8 |
| 6 | EVA Foam | 4 |
13 |
35mm² Parallel cable |
2 |
| 7 | Connect wire | 1 |
14 |
35mm² Inverter connection cable |
2 |
F A Q
Q: I need more function such BL and LCD screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.
Q: I’m very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides,we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market. Low profit? Don’t worry about that, our engineer team will help you help you to solve it.
Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.
Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.
Q:What about the delivery time and shipping?
A: EU warehouse delivery , we can make 3-7 days fast delivery; China warehouse delivery, for USA, Canada, Australia and most of European country , we provide tax included services, door to door, once you place an order, then you will receive your new battery pack in about 40-55 days at your home!
